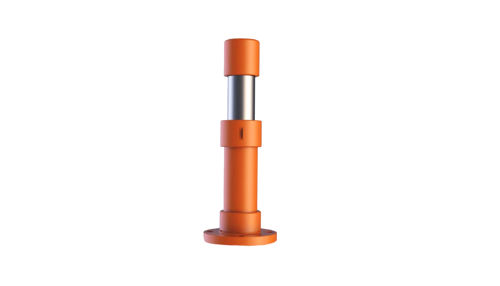

PHS Hydraulic Buffers absorb energy from collisions in rail transport and crane systems. These these self adjusting damping devices require no external energy, decelerates moving machines along the shortest possible path, and are available in two types: rear mounting or front mounting.

> Damping device requiring no external energy.
> Decelerate moving machines along the shortest possible path
> Self-adjustment.
> 2 types: Rear mounting or Front mounting.
> Options: Safety chain - Protection cover - Body coating (specific paint color).

> Filling: oil / nitrogen
> More then 150 different models: 2 types, 5 sizes, 15 stroke lengths
> Diameter range of 91 mm up to 167 mm
> Buffer stroke of 100 mm up to 800 mm
> Max. buffer power of up to 670 kN
> Operating temperature of -10 up to 80°C
> Wear-resistant piston rod by means of plasma coating
> Optional mounted piston rod protection
> Optimal throttle features designed for the specific requirements of the different application
> Paints according to customer requirement
