Yaw Slide Systems

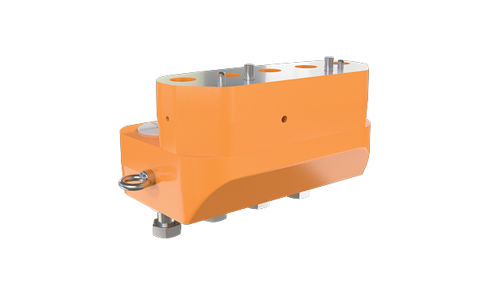

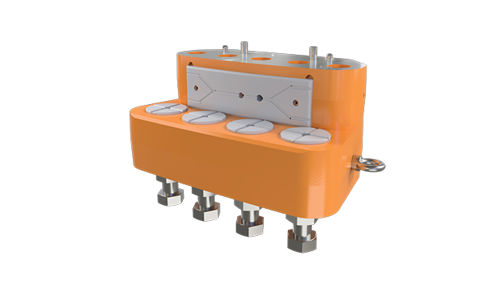

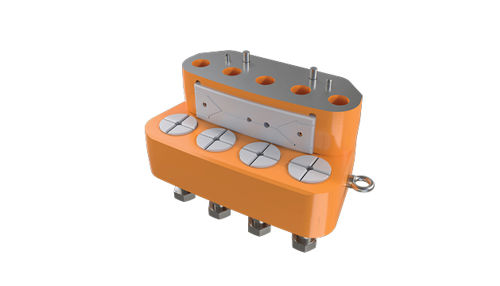

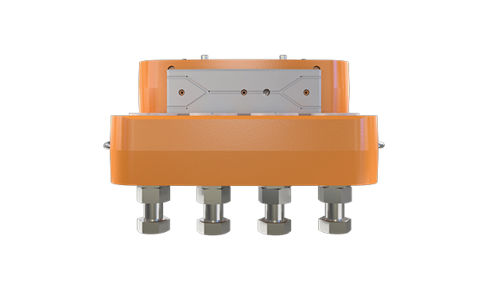

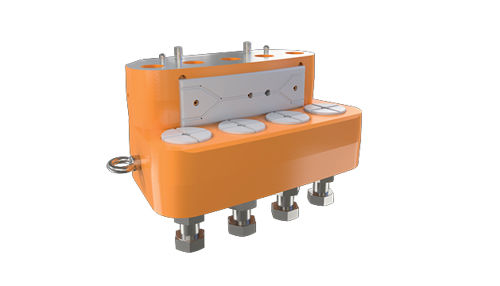

YSFA90 yaw slide system spring applied
YSFA90 yaw slide system spring applied
Svendborg Brakes yaw systems are designed and developed through significant R&D and testing investments and are considered state of the art for all modern medium and large wind turbines. All systems include a means of rotatable connection between the nacelle and the tower, and act as a rotation restriction of the nacelle. The actual components of the systems vary depending on the design characteristics.
Sliding Passive
Sliding Passive
Sliding Passive
Sliding Passive
Sliding Passive
The YSFA series comprises spring applied yaw slide bearings with both axial and radial support segments to work as load carrying components. The product family offers passive, hydraulic active as well as hybrid models, tailored to fulfil customer needs for performance and footprint specifications, making it ideal for sliding systems in Wind Turbines.
Closed passive / spring applied yaw slide system
Customized design to work as load carrying component
Large brake pad area for minimized wear, stress and lower disc temperatures
Few moving parts, easy maintenance and lifting eyes available for safe handling
Grease ports and channels for optimized performance
Prepared for installation of various monitoring systems
Broad selection of friction and sliding materials available
State of the art yaw systems reducing, noise, stress, peak, wear and service
